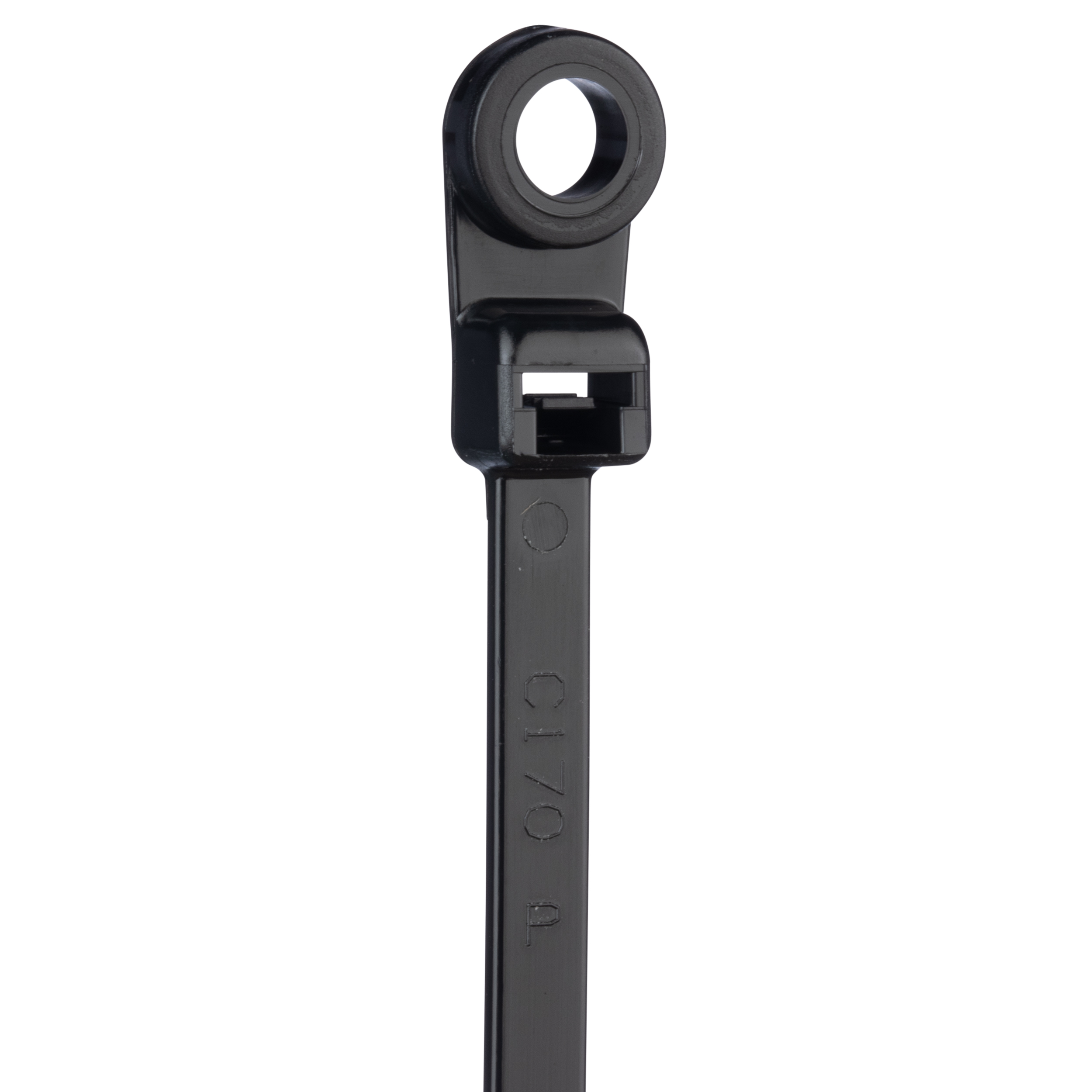

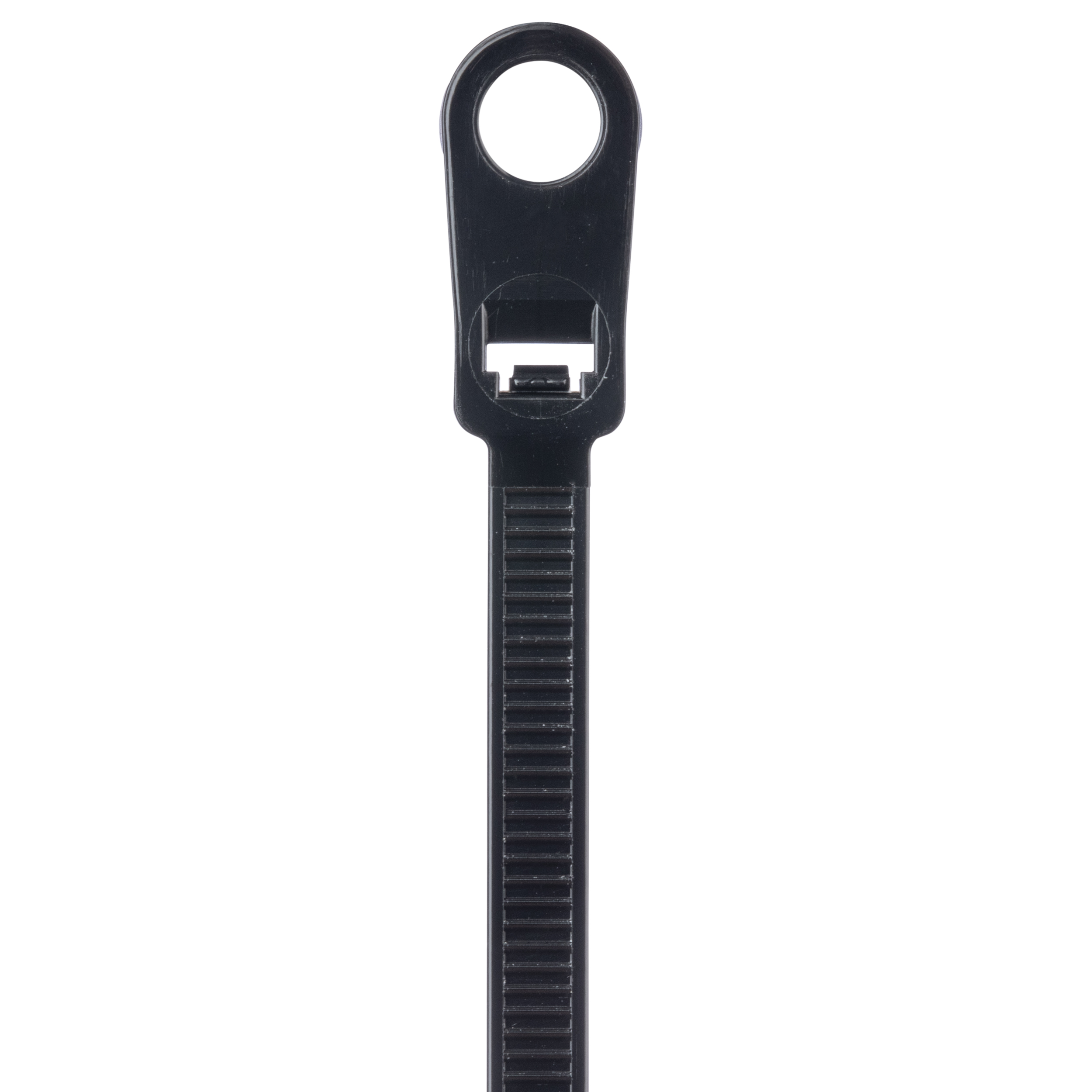

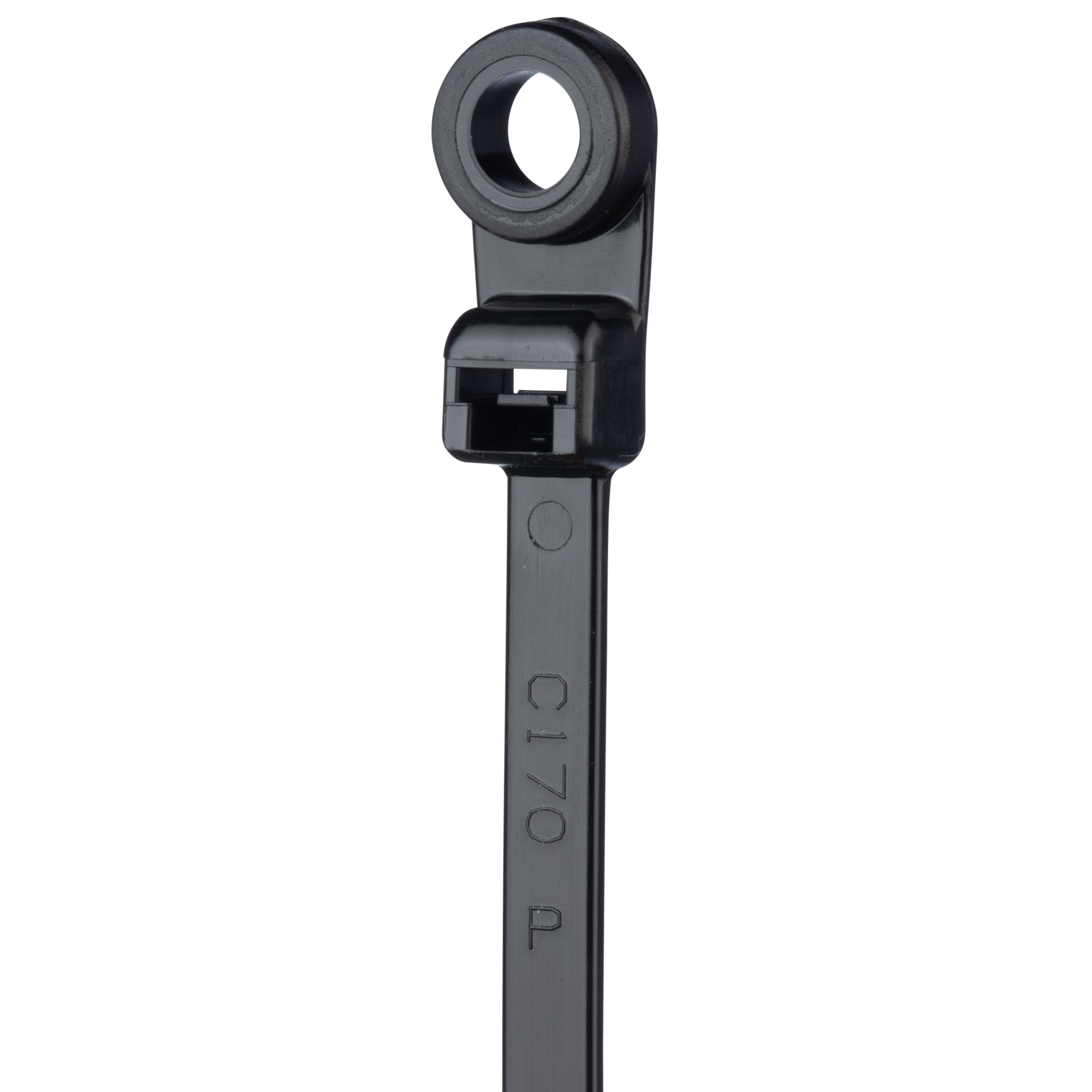

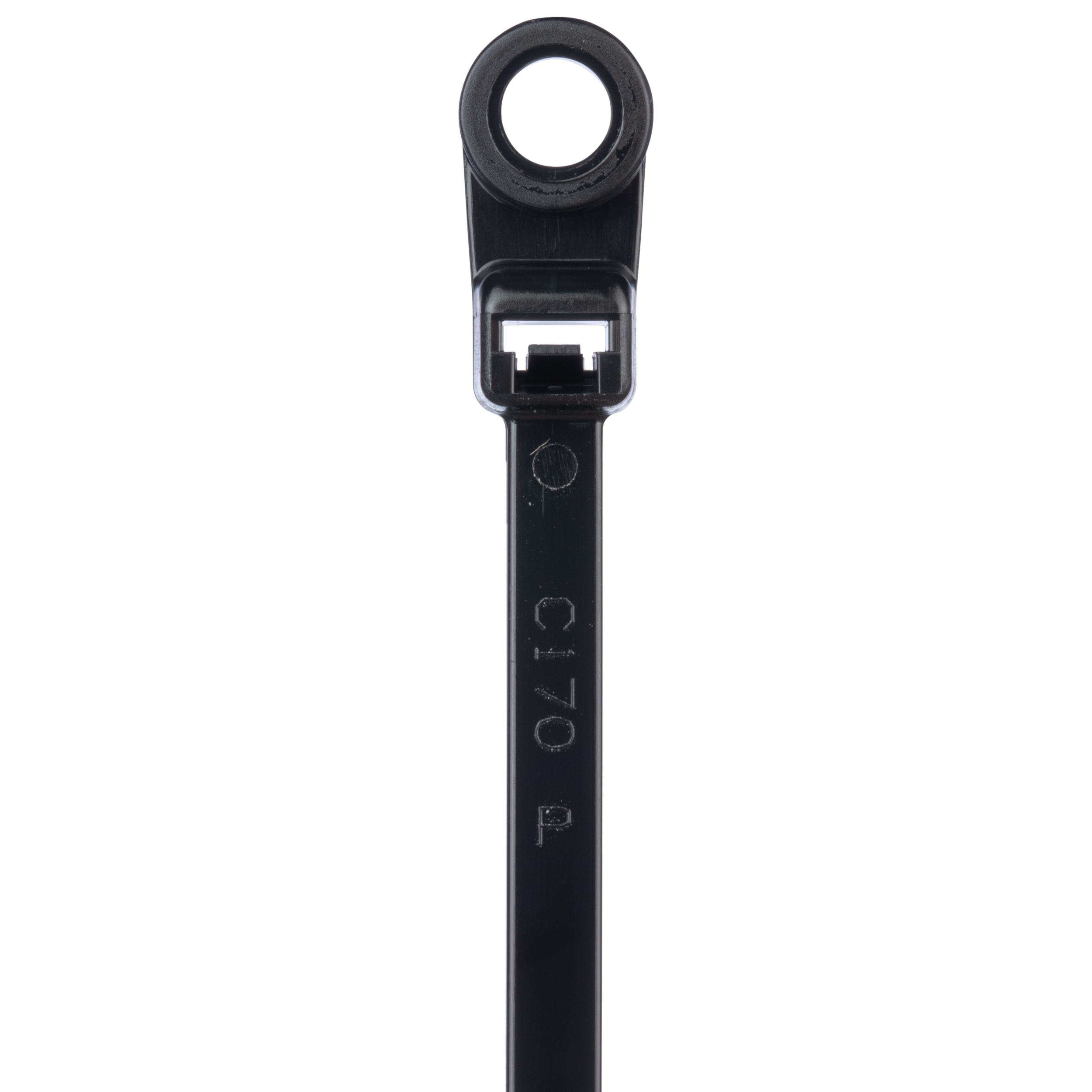

Tie locking clamp nylon black 7.9"

Manufacturer: Panduit | Catalog # PLC2S-S10-M0 | Electrozad South Part # 97479

$488.34 /m (1000 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Pan-Ty® Locking clamp tie. Standard cross section. Weather resistant nylon 6.6 material. Bulk package. Minimum loop tensile strength 50 lb. Operating temperature -60 to -85..C. Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling. General application. Weather resistant material has greater resistance to damage caused by ultraviolet light indoor or outdoor use. Heat stabilized material for high temperature applications up to 239..F indoor use. Design allows for bundling before or after screwing clamp in place. One-piece construction for consistent performance and reliability. Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation.

Technical Information

Applications
Used to Line Panel Edges and Knockouts Where the Chafing of Wires is a Concern
Body Thickness
0.047 in
Body Width
0.19 in
Bundle Diameter
47 mm
Material
Nylon 6/6
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Standard
CSA,E2186,UL
Tensile Strength
222 lb
Type
Interlocking Armored, Riser

Packaging

Package Qty
1000

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Ty

General Product Info

12-Digit UPC
074983556151
Color
Black,Orange,White
Environment
Indoor,Outdoor
GTIN
00074983556151
Product UPC
07498355615

Dimensions

Length
7.9 in
Overall Length
7.9 in
Thickness
In.
Width
NA In.

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Malaysia
