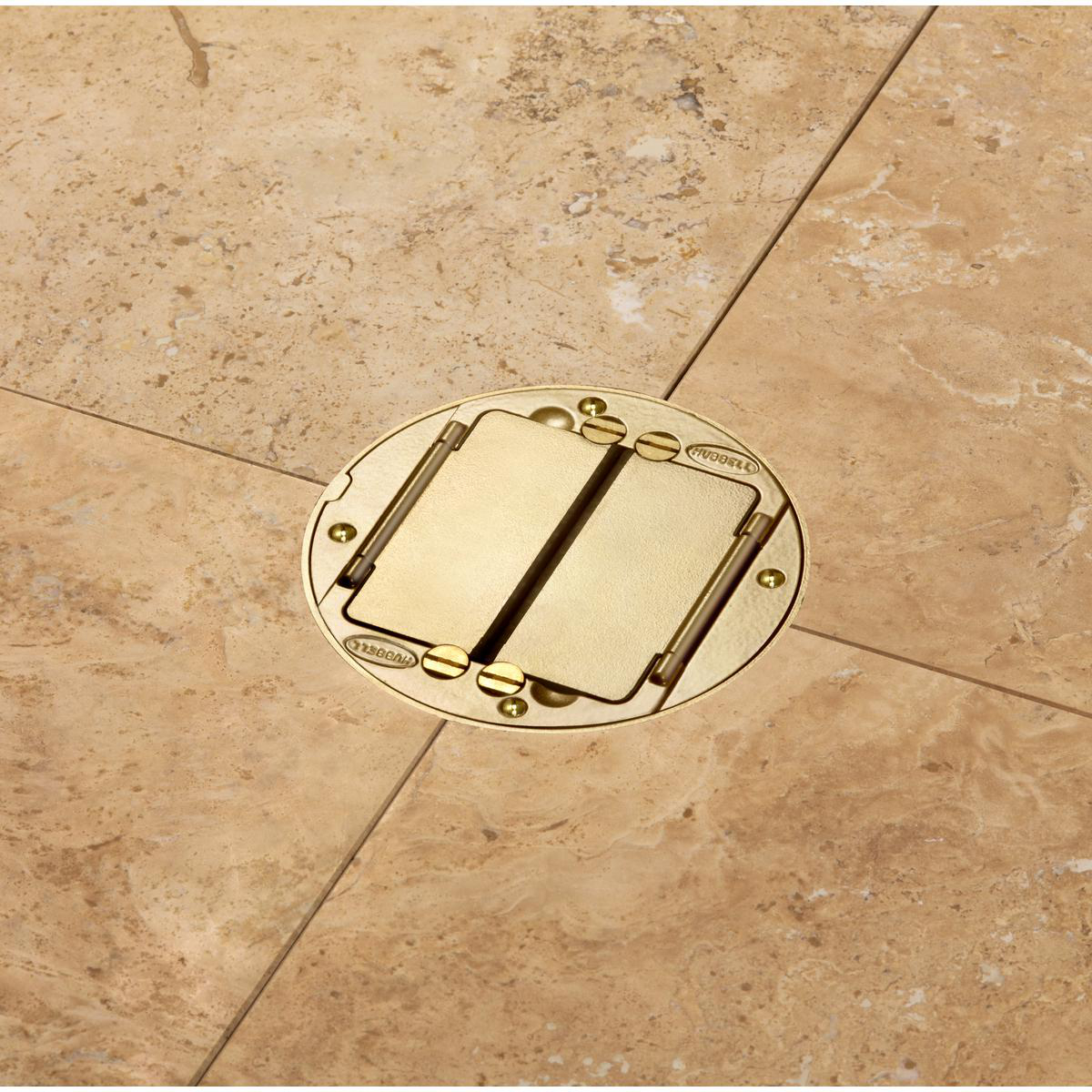

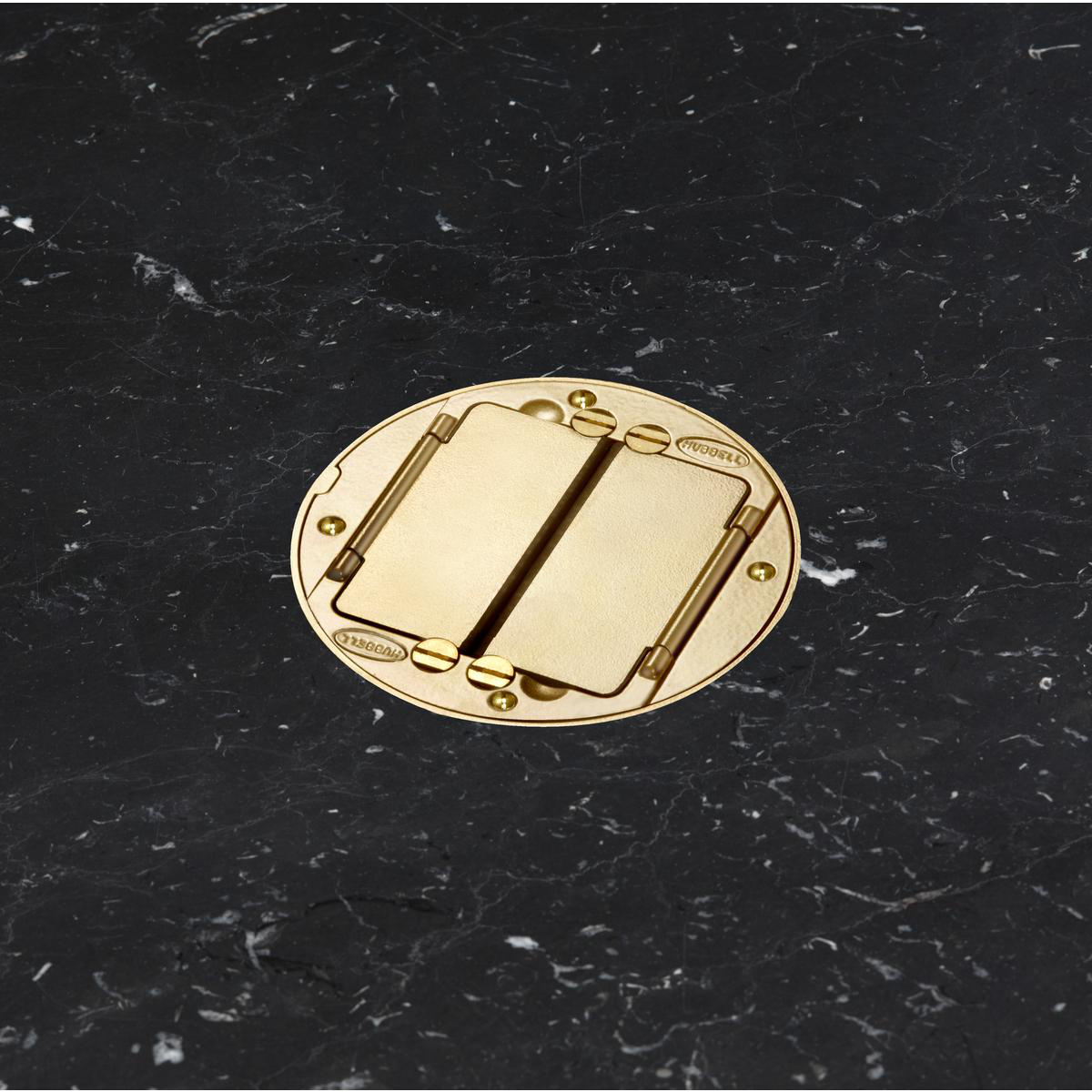

Cover universal carpet flange brass 5.62in dia

Manufacturer: Hubbell Wiring Devices | Catalog # S1TFCBRS | Electrozad South Part # 9783

$369.93 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Hubbell SystemOne is an innovative system that provides consumers with the flexibility to create personal solutions for the most demanding multi-service applications for both flush in-floor boxes and fire-rated poke-throughs. Hubbell SystemOne features a unique universal cover assembly and a wide variety of application sub-plates that install on both Hubbell flush floor boxes and fire-rated poke-throughs. Now, whatever the application, Hubbell SystemOne delivers a consistent, aesthetic and functional solution for applications in-the-floor or through-the-floor for power, voice, data and AV requirements. Hinged doors open 180 degrees flush to the carpet flange or tile. Screws allow each door to be secured independently. Universal carpet or tile flange can be used for Hubbell SystemOne metal and non-metallic floor box as well as SystemOne fire-rated poke-throughs. Cast aluminum construction. Provides consistent look and maximum functionality throughout the installed life.

Technical Information

Applications
For Tile
Cable Entry
Through Cover
Material
Die-Cast Aluminum
Mounting Type
4 in Core Hole in Concrete Floor
Size
Standard Sized Product
Standard
CULus,Meets ADA Standards,UL 514A
Style
Cover Flanges
Type
Flush Fire Rated Poke Through Component, 1-Device

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
SystemOne

General Product Info

12-Digit UPC
783585371092
Color
Brass
Construction
Cast Aluminum
Finish
Brass,Brass
GTIN
00783585371092
Product UPC
78358537109

Dimensions

Diameter
142.74 mm
Height
2.298 in
Length
5.678 in
Width
5.62 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Scrubwater Compliant
  • Dual Hinged Doors Open 180 Degrees
  • Durable Powder Coat Finish
  • Cast Aluminum Construction
  • ADA Compliant
