HUB HBL460RS2W RECEPT PIN&SLEEV 3P 60A 3P4W WITH FLIP COVER STYL2 | Electrozad South

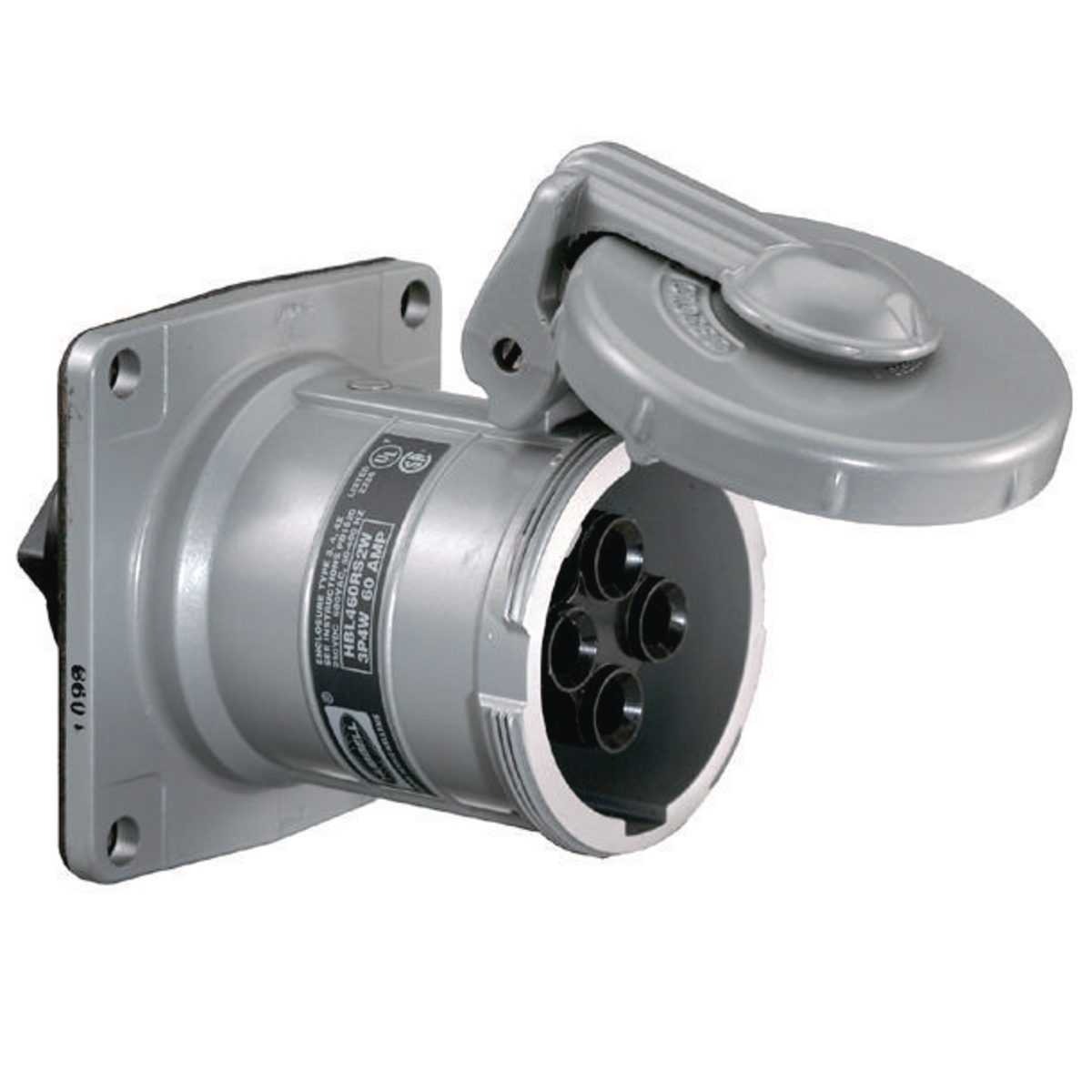

Product image for HUB HBL460RS2W RECEPT PIN&SLEEV 3P 60A 3P4W WITH FLIP COVER STYL2
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HUB HBL460RS2W RECEPT PIN&SLEEV 3P 60A 3P4W WITH FLIP COVER STYL2

Manufacturer: Hubbell Wiring Devices | Catalog # HBL460RS2W | Electrozad South Part # 9827
$704.16 /ea
pc
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual
Hubbell Pin and Sleeve series are available as cable plug, surface inlet with sealing ring, cable connector and surface outlet. Come with cap closure to insure continuous watertight connections. They come in version 20-30-60-100 amp (NEMA) and 16-32-63-125 amp (CEE rating), 2-3-4 poles depending on the voltage, yellow (130V), orange (125/250V), blue(250V), gray(277V), red (480V),black (600V). Angled low profile model, corrosion resistant model and grounded hood model also available. Several accessories, like back box, closure cap and cable adapters complete the serie.

Technical Information

Amperage
60 A
Applications
High Ampacity Connections
Conductor Size
8-2 AWG
Current
60 A
Material
Thermoplastic
Mounting Type
Screw, Surface
Number of Phases
1,3
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,CSA Spec. C22.2 No. 182.1,Type 4X,UL,UL Standard 1682
Style
Standard Service,Style 2 Grounding
TC Connection
Pressure Screw Terminals
Type
Watertight
Voltage
250 V
Wattage
36000 W
Wire Count
4
Wire Size
8-2 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585010649
Color
Black/Gray
Environmental Conditions
Watertight
GTIN
00783585010649
Product Series
UL 1686 Class 1 Insulgrip®
Product UPC
78358501064
Weight
2.5 lb

Dimensions

Height
4.900 in
Length
6.700 in
Width
5.300 in

Certifications & Compliance

Certifications
And UL 1010 (plugs Only) CSA Certified To CSA Spec. C22.2 No. 182.1,CSA Certified To CSA C22.2 No. 182.1,CSA Certified Type 4X.,No. 94 And No. 159 (plugs Only) UL Listed,No.94 And No. 159 (plugs Only),UL 50,UL Listed,UL Listed,UL Listed And CSA Certified Type 4X.,UL Standard 1682,UL Standard 1682,UL50 And UL1010 (plugs Only)
Country of Origin
USA
